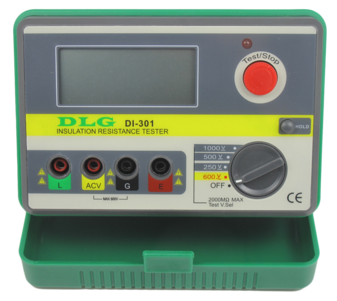

Digital Insulation Resistance Tester

DI-301

  • Testing Voltage                250/500/1000V
  • Insulation Resistance        0.01M-200MΩ      ±（3%+5）                                                                      200M-2000MΩ     ±（5%+5）
  • AC V                                600V                   ±（2%+5）
  • Autorange
  • Data Hold
  • Low Resistance Buzzer
  • Low Battery Warning
  • Power Source                    1.5V AA * 6
  • Max. Display                     1999
  • LCD Screen Size                26*62mm
  • Dimension                        6*4*2.8 inch  (150*100*70mm)
  • Weight                             400g

FEATURE

Clamp on Ground Resistance Tester With USB

-DI-120 Basis Version​​

-DI-120A Plus Current Leakage    Test

-DI-120B Plus True RMS

  Crrent Leakage Test

Digital Insulation Resistance Tester

​-DI-301  For 250/500/1000V

​-DI-302  For 500/1000/2500V

​-DI-303 For 15/50/100V

Phase Rotation Tester

-​DI-PT01 Non-contact Phase Rotation Tester

-​DI-PT03 Phase Rotation Tester​​

SPECIFICATION

  • ​Low resistance buzzer.

  • Data hold.

  • Low battery warning.

  • Packed with professional test leads, heavy duty nylon bag and six 1.5V AA batteries.
