FOR TRACTION BATTERY
FOR STARTING BATTERY
internal resistance test
FOR STARTING BATTERY
- Operation condition : 14℉- 131℉ (-10℃- 55℃)
- Relative humidity : lower than 80%
- Overall dimensions : 4.5*2.8*8 inch (11.5*7.0*20.5 cm)
- Net weight : 2 lb (900 g)
- Maximum voltage : DC 19.99V
- Internal resistance of battery : 1.00 milliohm-99.99 milliohm
- Optional battery standards:
- CCA : 100-1700 IEC : 100-1000
- EN : 100-1700 DIN : 100-1000
JIS : need to look up table and contrast CCA - LED status : "GREEN" --- service life and battery good "YELLOW" --- service life and battery abnormal
"RED" --- replace battery
- available for 12V battery with CCA ranging 100-1700
- SOH test
- internal resistance test
- engine start-up load test
- maximum load test
- charging system test

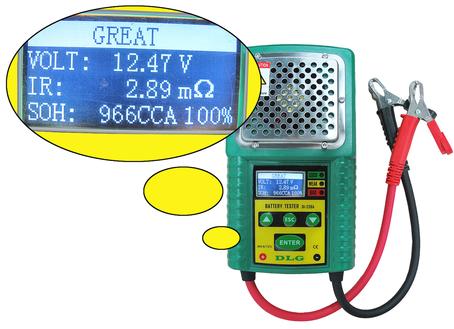

LCD Display For Starting Battery
- Overload Protection
- Reversed-polarity Connection Protection
- temperature controlled to avoid destruction
- Load Test Time Protection
- available for 6V / 12V lead-acid traction battery from 40 to 200 AH
- 80 Amp load test, 10 seconds test period controlled by microprocessor timer
- temperature controlled to avoid destruction
- sound and light indication for test result reading
Lead-Acid Battery Tester
SPECIFICATION
versatile for traction battery and starting battery

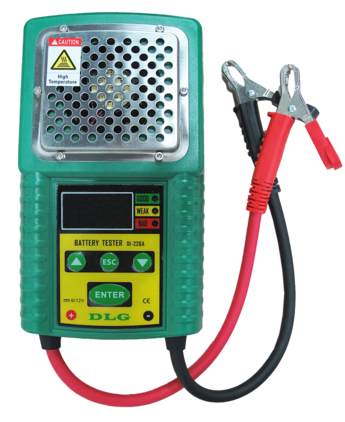

DI-226A
FEATURE
OVERALL
- Load test current : <80A
- Battery capacity test range : 40Ah-200Ah
- Maximum voltage : DC 19.99V
- Internal resistance of battery : 1.00 milliohm-99.99 milliohm
- LED status : "GREEN" --- battery sufficient "YELLOW" --- battery low
"RED" --- replace battery - Battery capacity preset : 40-200 Ah continuous adjust, 5Ah increment
- Test time : less than 10 seconds
- Test interval : about every 5 minutes

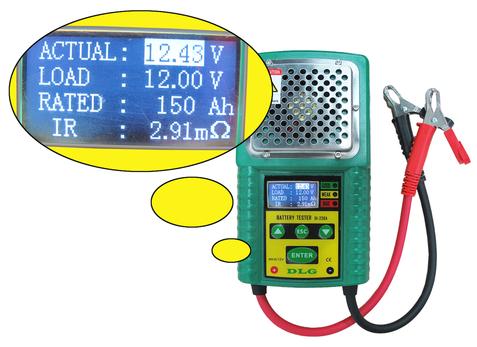

LCD Display For Traction Battery
FOR TRACTION BATTERY
LCD display for full result readings
OVERALL FEATURE
